How to Install a UHF Handpiece Mount in the Next-Gen Ranger, Everest & Raptor

A UHF handpiece that isn't mounted ends up in one of two places: wedged between the seat and the centre console, or on the floor somewhere near the driver's feet after the first pothole. Neither is where you want it when you actually need to key up in a hurry.

This is the full install walkthrough for our UHF Handpiece Mount, built specifically for the Next-Gen Ranger, Everest and Raptor. Real tools list, real time estimate, and the actual install video rather than a generic explanation.

What You're Fitting

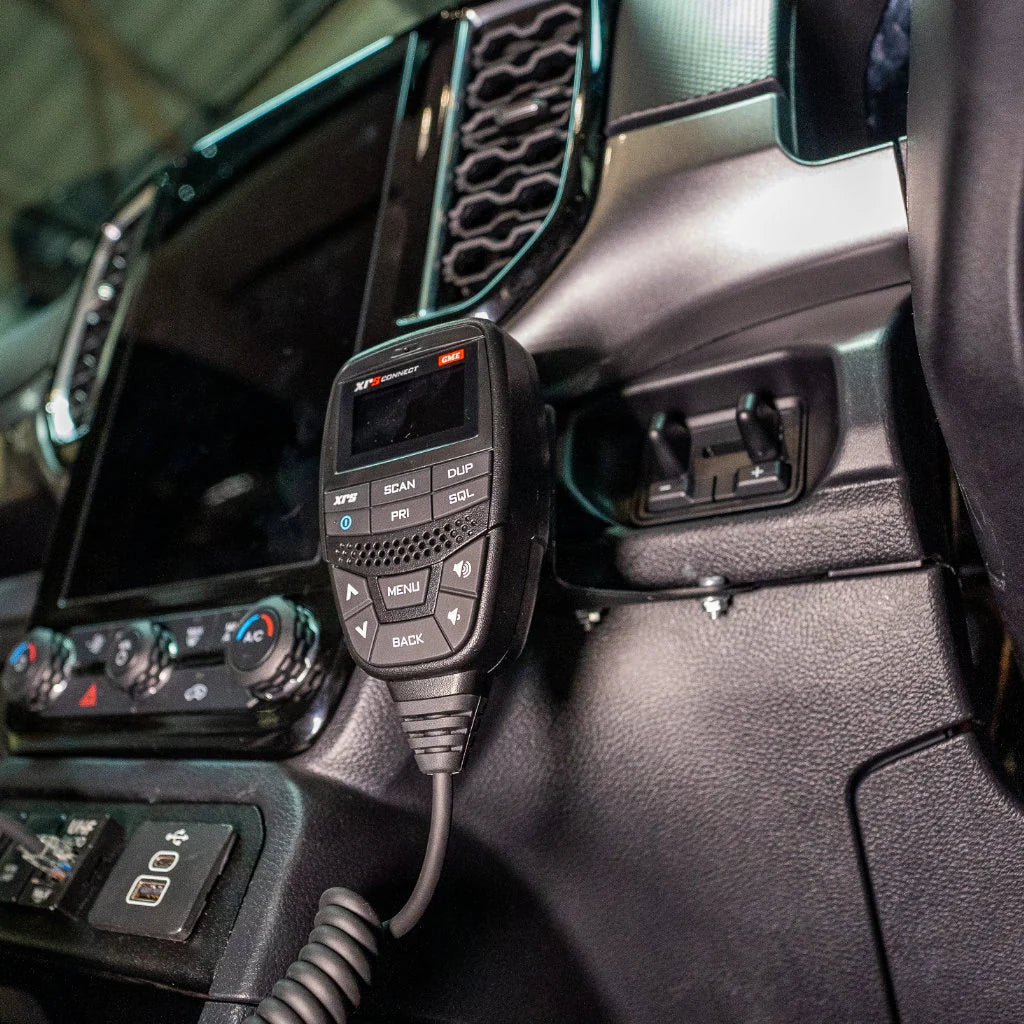

UHF Handpiece Mount fitted in a Next-Gen Ford Ranger

The UHF Handpiece Mount is a powder-coated zinc steel, two-piece bracket built to hold your handpiece securely without rattling around at highway speed.

$70 AUD · 0.2kg · Powder coated zinc steel · Mounting hardware included · 37 reviews, 92% five-star

  • Designed for the GME catch or magnetic button — other brands can also be used
  • Multi-pattern mounting holes, so your specific mic holder bolts straight to the bracket
  • Basic cable routing channel keeps the cord tidy rather than dangling loose

Tools You'll Need and How Long It Takes

Nothing beyond a basic driver or small socket set — all the fasteners needed for the mount and the mic holder bracket ship in the box, so there's no separate hardware run to Bunnings first.

  • Phillips or flathead screwdriver, or a small socket set matching the supplied fasteners
  • The mounting hardware included with the kit
  • Your UHF handpiece and its holder/catch, to test fit once mounted

Realistically 10–15 minutes if it's your first time, faster once you've done it once. Customer reviews consistently describe it as a straightforward fit after watching the install video below — this isn't a job that needs a workshop or a full afternoon.

Step-by-Step Install

  1. Watch the install video first. It's genuinely worth the four minutes before you start — several customers specifically call out that watching it first made the physical install faster.
  2. Position the bracket. The mount locates near the dash/console area, using the vehicle's existing points rather than requiring new holes.
  3. Secure the bracket with the supplied hardware. Hand-tighten first to confirm alignment, then fully tighten once you're happy with the position.
  4. Attach your mic holder to the bracket. The multi-pattern mounting holes mean most handpiece holders — GME catch, magnetic button, or otherwise — bolt straight to the same bracket.
  5. Route the cable through the cable management channel. Keeps the cord tidy instead of swinging loose across the console.
  6. Test fit and remove the handpiece a few times. Confirm it seats securely and releases cleanly before you call the job done.

Watch the Install

One genuine tip from a customer who fitted this to a 2026 Everest: if you notice a small amount of shake at highway speed, a thin piece of foam behind the top corner of the bracket firms it up completely. Not something we include by default, but worth knowing if you notice the same thing.

Frequently Asked Questions

Will this fit my GME XRS-330?
Yes — the bracket is designed around the GME catch and magnetic button style handpiece holders, which covers the XRS-330. The multi-pattern mounting holes also mean most other brands' mic holders bolt straight on.

Do I need to remove the dash to install it?
No — the mount uses existing points near the dash/console area rather than requiring the dash to be pulled apart. Watching the install video first will show you exactly where it locates on your model.

Does it come with all the mounting hardware?
Yes — fasteners for both the bracket itself and the mic holder attachment are included in the box.

Does it fit the Everest and Raptor as well as the standard Ranger?
Yes — it's built for the shared Next-Gen cab architecture across the Ranger, Everest and Raptor from 2022 onward.

How much does the mount weigh?
0.2kg — light enough that it won't register on any payload calculation.

Is there anywhere to route the cable so it doesn't hang loose?
Yes — the mount includes a basic cable routing channel built into the bracket.

A Ten-Minute Fix for a Problem Every UHF Owner Has

This is one of the simplest installs in our whole range, and also one of the most-fitted — because every single UHF owner has the exact same problem of a handpiece with nowhere proper to sit. Ten to fifteen minutes, no drilling, and the cord stops draping across the console for good.

Suits the Next-Gen Ranger, Everest and Raptor from 2022 onward — check the full Next-Gen Ranger, Everest and Raptor ranges for everything else built for your exact platform.
