Where a Fire Extinguisher Should Actually Mount

The rule that matters more than any other: it needs to be reachable from the driver's seat without unclipping your belt or leaning into the back. If you have to think about where it is, it's in the wrong spot.

A few positioning principles that hold up across almost every vehicle:

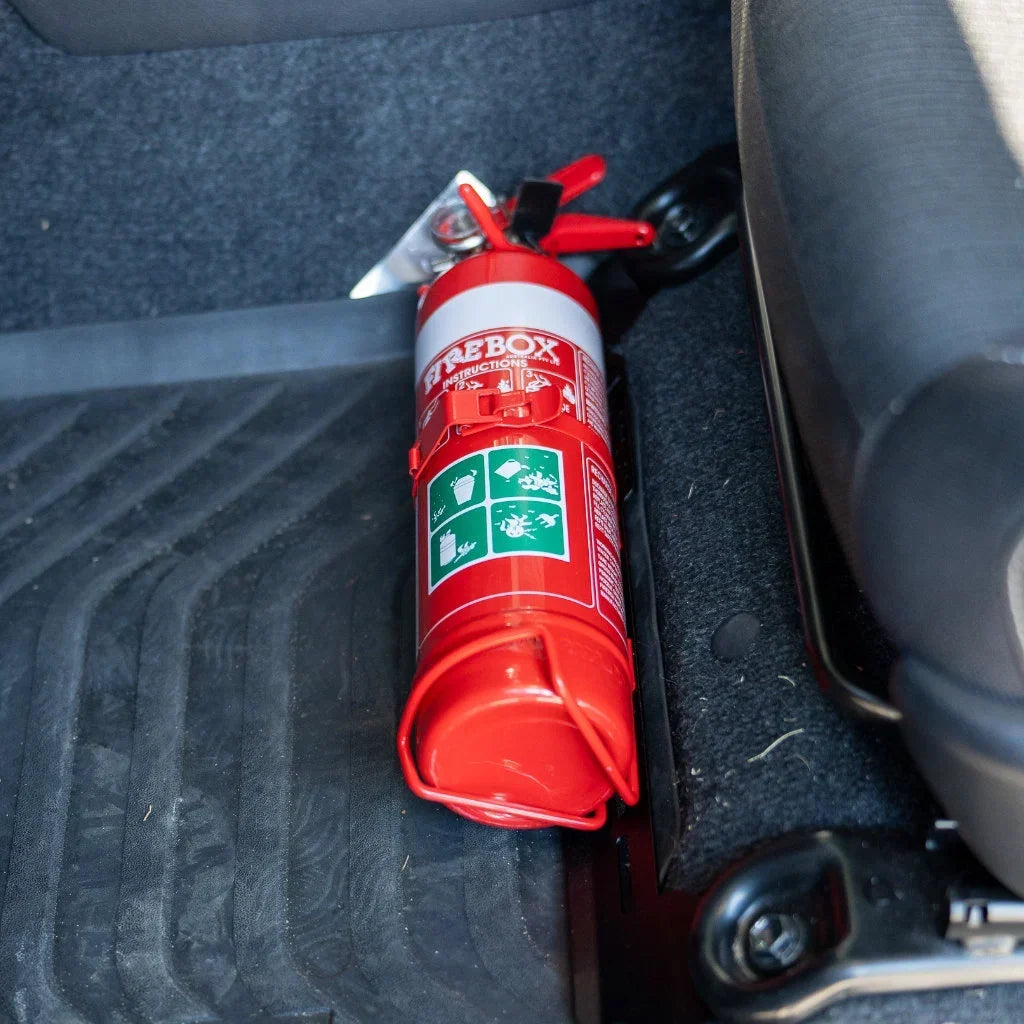

• Driver's side footwell or base of the seat — the most common mounting point on utes and wagons, and the one most of our brackets are engineered around
• Clear of foot space and pedals — reachable doesn't mean in the way; a bracket that interferes with the clutch or brake pedal is a hazard in its own right
• Not buried under gear — behind a drawer system, under a dog bed, or wedged into a door pocket with recovery straps defeats the entire purpose
• Out of direct sun where possible — extended heat exposure can affect the pressure gauge over time
• Secure enough to survive corrugations — a loose extinguisher rattling around during a rollover becomes a projectile, which is exactly the outcome a bracket is meant to prevent

Every bracket in our range is engineered around specific factory mounting points for each vehicle, which is a big part of why "universal" brackets tend to disappoint — they're designed to roughly fit everything, which usually means they fit nothing particularly well.

Fitting the Bracket: What's Actually Involved

Install specifics vary slightly by vehicle and bracket, but the process across our range follows the same basic sequence:

1. Confirm your fitment. Check the bracket is listed for your exact model and year range before ordering — a Hilux N80 bracket won't sit right in a 79 Series, even though both are Toyotas.
2. Locate the mounting point. Most brackets use existing factory bolt holes or seat mounting points, so there's no drilling into the floor pan or cutting trim.
3. Bolt the bracket into place. Mounting hardware is supplied with every bracket — you shouldn't need anything beyond a socket set.
4. Fit the extinguisher into the bracket. Confirm the retention strap or clamp is snug enough that the extinguisher won't shift under hard braking or on rough tracks.
5. Test the reach. Sit in the driver's seat, belt on, and physically reach for it. If it's awkward from the seat, it needs repositioning before you call the job done.

Below is the actual install video for our LandCruiser 300 Series bracket — the process for most of our other fitments follows the same basic logic, just adjusted for where the factory mounting points sit on each model.

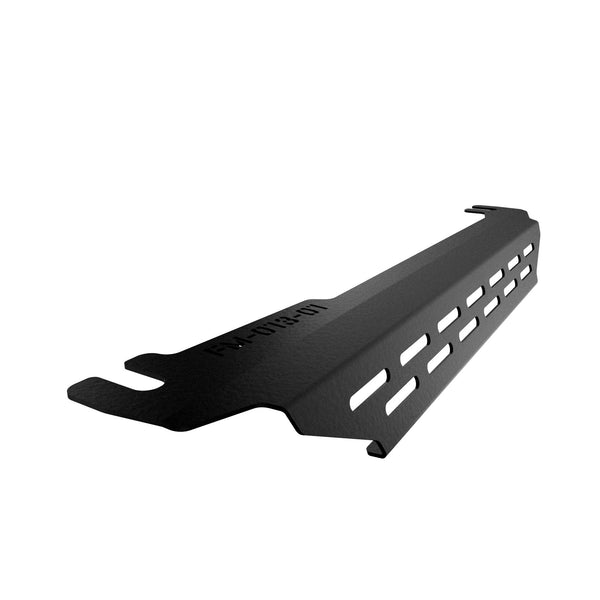

Featured Fitment: Fire Extinguisher Bracket for LandCruiser 300 Series

The Fire Extinguisher Bracket for LandCruiser 300 Series sits snug and out of sight while staying fully within reach of the driver's seat — no rattling, no digging around for it.

$79 AUD · Mild steel, black powder coat · 0.5kg bracket weight · Fits up to a 1.2kg extinguisher · Mounting bolts included

Don't already have an extinguisher to fit? Add the 1kg Fire Extinguisher at checkout as a bundle.

Find Your Vehicle

Every bracket below is built specifically around that model's factory mounting points — check the fitment notes on each product page before ordering.

Can't see your vehicle listed, or driving an Isuzu D-Max? Browse the full Fire Extinguisher collection — new fitments are added regularly as we build for more platforms.

Once It's Fitted: Keeping It Ready

A mounted extinguisher that's never checked is only marginally better than no extinguisher at all. The maintenance routine is quick and worth building into a six-monthly habit, ideally tied to something you already do regularly like a service or rego check:

• Remove the extinguisher from the bracket
• Turn it upside down and hold for 30 seconds
• Return it upright and hold for another 30 seconds — this stops the powder from settling and caking inside
• Check the pressure gauge is sitting in the green zone
• Confirm the safety pin is intact and secure
• Mark the date on the service tag so you know when it's next due

Frequently Asked Questions

Where's the best place to mount a fire extinguisher in a ute?
Driver's side footwell or the base of the driver's seat, reachable without unclipping the seatbelt or reaching into the back — that's the standard our brackets are built around.

What size extinguisher do these brackets fit?
Most of our brackets are built around a 1kg to 1.2kg extinguisher. Check the specific product page for your vehicle, as maximum size can vary slightly by fitment.

Do I need to drill into my vehicle to install one?
No — our brackets are engineered around existing factory mounting points, so it's a bolt-in install with the supplied hardware.

How often should I check the extinguisher itself?
Every six months: invert it, hold, return upright, hold again, check the gauge and pin, and log the date on the tag.

Can I buy the extinguisher and bracket together?
Yes — most brackets can be bundled with our 1kg fire extinguisher at checkout if you don't already have one.

A Bracket Is Only as Good as Where It's Mounted

The extinguisher itself matters less than most people assume — what actually determines whether it gets used in an emergency is whether it's reachable, secure, and where you actually expect it to be. A $79 bracket bolted into the right spot does more for your safety than a premium extinguisher rattling around loose in the tub.

Find the bracket built for your vehicle in the Fire Extinguisher collection, or if you're building out the rest of your rig at the same time, check the full Mounting Brackets range for UHF, aerial, and battery mounts built the same way — around your exact vehicle, not a generic fit.
